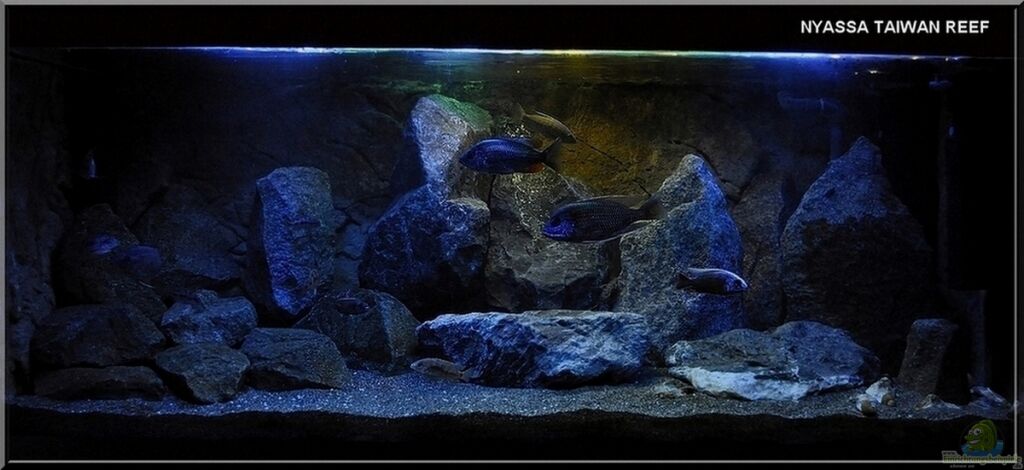

...kleines `Nyassa TAIWAN REEF` in 540L...
Description of the aquarium:
Category:
Lake Malawi
Tank size:
150*60*60 = 540 liters ~ 142 gallons (us)
Specific features:
Aquarium with cupboard in beech optics, type "Exclusive".
Stoßverklebt ground with safety seam inside edges.

Special made:
3 holes in the basin / sub-cabinet: 2x intake, 1x outlet.

Bought by the manufacturer of my confidence: :-)
http://www.friedeberg-atd.de
(top price / performance ratio!)

************************************************** ***************************

Overall, I've tried following the submission of many images and movies from the
Malawi to replicate the preferred of mine rock-Habitat.
Here I am essentially in the region around the Taiwan Reef in
15m depth maintained.
Here are mainly large boulders and stones on the ground
with few "sand cracks" in between!

************************************************** ***************************
...meine auserwählte Region des Malawisees...
Eindrücke aus dem Taiwan Reef...:-)
...verschiedene
Lichtverhältnisse...
dem...
Tagesverlauf...
mehr oder...
weniger passend...
nachempfunden...:-)
So langsam...
wird es nun Nacht im Reef...! :-)
Aquarium decoration:
Gravel:
************************************************** ****************************************

50kg beige quartz sand (0,1 - 0,5 mm) and 10kg light brown,
fine gravel (0.7 - 1.2 mm) and mixed to 15kg black / anthracite
colored quartz sand (0,5-1,0mm)

************************************************** ****************************************
Plants:
No more!
In Taiwan Reef there is no ... :-)

Moreover, the gloomy lighting conditions and the hardness of the water in Berlin seem to prevent in my pelvis a vegetation.
All experiments with various plants and the various
Fertilizer additions have failed in the past (with the exception of Anubias species)!

************************************************** ****************************************

Instead of Plants images I use the wildcards here for older Pictures of my pelvis as "development history" ... :-)

************************************************** ****************************************
Juni 2009 (erster Monat des Beckens...)
Oktober 2009
März 2010
Juni 2010
Juli 2010
September 2010 - Sieger Beckenwettbewerb...:-)
Oktober 2010
November 2010
Hauptbild bis Feb`2011...
Special features of the facility:
************************************************** ****************************************
100kg collected, brushed and boiled river Break granite, arranged with many retreats / columns / Caves / and zones.

Instead of projecting 3D back wall - which always "fix" remains, I can simulate "natural" Rocky Landscape with stones / rocks one that at
Demand can be customized ... :-)

Everything built on 2cm styrofoam to protect the ground glass.

************************************************** ****************************************

4x Jewel 3D walls (rear and side walls) Type "Gem Stone Lime", 60 * 55 to around
generate a sense of security / Security for the fish and for the protection of
Glass front of the stones which are built partly directly on the wall!

************************************************** ****************************************

I have tried in my pelvis to create the right environment for my stocking:
For Copadichromis a kind of rock-transition zone with stones, rubble and a few sandy areas and lots of "free water".
For Sciaenochromis and Protomelas pronounced rock regions (with plenty of caves / niche!) And enough free swimming space.
All this I have tried as much as possible in my little "Taiwan Reef" as an underwater rocky landscape "biotopnah" implement!

The Taiwan Reef Region in Malawi

The size of Lake Malawi and its corresponding existing diversity of cichlids, make a not easy to decide on a specific region, from which the fish to be maintained originate.
For aquarium replica of a habitat near NonMbuna-habitat it is also irrelevant whether we are accustomed Wild from the region or bred.

I want to go step by step to such habitat.

The choice of the region has emerged for me it quickly:
Approximately 7km north before Chizumulu Iceland is the underwater lying "Taiwan Reef" with the most for me NonMbunas of Lake Malawi, the Protomelas steveni Taiwan Reef!

Accordingly, it was clear, a corresponding rocky habitat combined to create with free stretches of sand in my aquarium.
The next question which then arises is, what further types match the Protomelas and the habitat of the Taiwan Reefs?

After intensive research I have found that there are the following very beautiful NonMbunas from the preferred by my region, which can be associated together in an aquarium of my size and can live together in a kind of symbiosis:
Protomelas sp. steveni "Taiwan Reef"
Copadichromis sp. "Taiwan Yellow"
Copadichromis borleyi "Taiwan Reef"
Copadichromis virginalis "Taiwan Reef"
Sciaenochromis fryeri (seeweite dissemination)

The biggest problem is probably the procurement of Copadichromis be species from the region, because they are rarely caught and exported!

************************************************** ********************************
Felsen (1)
Felsen (2)
Felsen (3)
Felsen (4)
Felsen (5)
Felsen (6) - durchschwimmbare Spalte zwischen den beiden grossen Felsbrocken...:-)
von links (1)
von links (2)
von links (3)
von links (4)
von links (5)
von links (6)
von rechts (1)
von rechts (2)
von rechts (3)
von rechts (4)
von rechts (5)
von rechts (6)
...einige Muscheln und Schneckenhäuser sind angeschwemmt worden...
Aquarium equipment:
Lighting:
In this natural habitat, the spectral colors are "blue" and "green" still strongly reflected.
"Yellow" is just over 15 meters of water already in the absorption phase, already "orange" from 10 meters and "red" is already completely absorbed.
In this very special, plants loose biotope there are lunchtime a
lighter incident sunlight, otherwise prevails here almost exclusively the
typical dim-blue / green light before.

Depending on the connection of the individual tubes, I get in the pool more or less brightness / sunlight and more or less blue / green components.

So I'm trying rudimentary existing in the rocky habitat Lichtwechsel
replicate throughout the day without lighting computer. :-)

Classic "evening glow" does not exist, because it does not correspond to the actual conditions in the depth of the selected biotope me! :-)


************************************************************************************************************************************************************************************
(NB .: Many, many thanks to Silvan for competent information about the
Lichtverhältnissenin my biotope !!!)
************************************************************************************************************************************************************************************

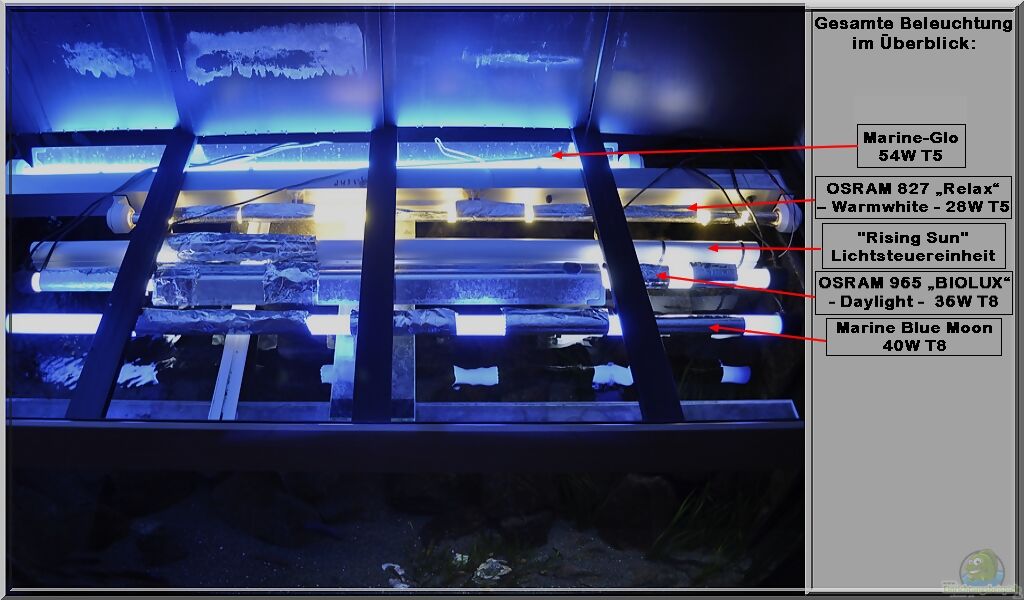

The following bulbs, so I have tried to replicate this unique atmosphere in my "Reef":


T5 light bars (separately switchable)

- 1x OSRAM 827 "Relax" - Warm White, 28W T5
(ensures a slight incident sunlight at noon, when the
Sun is at its highest, almost completely wrapped in aluminum foil, with little
"Light gaps" and in the middle with a little yellow Decorhülse wrapped)

- 1x Marine-Glo 54W T5
(blue light, reversing the JBL reflector = indirect light from above)


1 x T8 GLO ballast

- 1x OSRAM 965 "BIOLUX" - Daylight, 36W T8 120cm
(brilliant light with very light blue shimmer in 1st row)
Partially wrapped in aluminum foil to obtain "shadow areas" and with green decor sleeves partially sheathed for a slight "green cast"!


1 x T8 GLO ballast

- 1x JBL Blue Moon, 40W T8 120cm (blue light in the center area)
Partially wrapped in aluminum foil to obtain "shadow areas".
This tube I reach the typical "blue glow", which prevails in large parts of Lake Malawi at depths of approximately 15-20m.


************************************************** ********************************
to:
Moonlight beams with 12 LEDs, light color blue, dimmable, and 2x 5-LED
as subtle moonlight.
************************************************** ********************************


Lighting times

8:00 a.m. to 10:00 Moonlight 120 min (end of night)
10:00 to 22:00 Blue Moon Marine tube and GLO for stronger blue components
11:00 to 21:00 daylight tube "Daylight" for daylight with light blue / green Shares
12:00 to 15:00 "Warm White" tube to a slight "solar fraction"
22:00 to 1:00 Moonlight 120 min (start of night)
1:00 to 8:00 Darkness

Reinebeck lighting with "daylight" So 12 hours.
Everything in each "smooth transition".

Seems to me to be an acceptable solution, as long as I did not make
"Professional Lighting Computer" have, which can simulate anything ... :-)
Filtration:
EHEIM 2080 Professionally III


- With "Eheim Power diffuser"!

Highlights:
Large pre-filter for easy intermediate cleaning and extra long service life.
3 hose connections (2 suction side, 1 pressure side) for great water circulation (especially in larger aquariums)

Technical specifications:
for pools up to 1200 l
Pump capacity in l / h: 1700
Power consumption 30 Watt
Filter Total volume approximately 25 liters,
Filter masses: 13.5 l
Number of filter cartridges: 3 + 1 (prefilter)

Filter media: (3 filter cartridges from bottom to top)
EHEIM Mech Keramikröllchen mixed with TetraTec Bioballs
HOBBY zeolite (thin layer), about fine mat, about Lewatit
Prefiltering with a coarse filter mat

*****

The top of the filter cartridge EHEIM Prof.III filter 600 from Bayer (500g) filled with ion exchange resin Lewatit MP which, among other things, to reduce nitrite / nitrate in the water.
The water is crystal clear and total charged less!
Other very useful (for me) information

under: www.stefans-malawizucht.de



FLUVAL 4Plus internal filter


1 x as an additional filter and the additional flow and mechanical filtration
(Pumping capacity 1000 l / h, 10 Watt)
in the rear right side of the pelvis, filled with
- 1x standard filter sponge
- HOBBY zeolite


RESUN internal filter SP-1200L

1 x as an additional powerhead, with filter cartridge for mechanical filtration
(Pump capacity 700 l / h, 12 Watt)
in the left rear side of the pelvis under the STREAM REEF


REEF STREAM RS-5000 flow pump

Pump capacity 5,000 l / h, 14 Watt.
Makes for a super water-circulation and flow,
in which the fish like spending :-)

of www.grotech.de


Resun SP-980 Aquarienpumpe

1 x RESUN, Power Head SP-980 550 l / h / 9Watt / h max = 1.3m
for additional surface flow ...

- Water outlet attached to the top, about 40 cm along the left side window,
EHEIM-pipe pieces with ejection nozzles and plugs from the InstallationsSET 2
- Switched via time switch 24h for varying intervals

-> Created great undulating surface movements!


************************************************** ************************************

- Addition in the bottom corner (back right) of the pelvis about 500ml zeolite
2 JBL Filterbags stowed (under stones) ...

************************************************** ************************************

The entire filter pump capacity of 3,400 l / h plus. The Reef stream circulation pump with 5000 l / h and the Resun SP-980 with 550 l / h for these pelvic size more than adequate.

************************************************** ************************************
Other equipment:
************************************************** ************************************

300W JBL ProTemp S300 heater

with protective cage made of plastic, safety switch (dry run protection)
and "Automatic Thermal Control (ATC)" ... ;-)

- But> is almost never in use, because the temperature is sufficient in the living room!

************************************************** ************************************
Eheim Professional 3 - Mann ist der groß! :-)
EHEIM-Doppel-Power-Diffusor
Innenfilter FLUVAL 4Plus
Innenfilter RESUN SP 1200L mit Schnellfilterpatrone...
Stroemungspume ReefStream RS-5000
Resun Sp 980 sorgt fuer zusaetzliche...
...Oberflaechenstroemung und Wellen...oder auch Regen...;-)
...macht zusammen `Strömung XXL`...! :-)
Beleuchtung... (kommt noch neu, da überarbeitet...) :-)
Frostfuttersortiment
Trockenfuttersortiment :-)))
Wasser Zugaben... (den Dünger benötige ich derzeit nicht mehr...)
kleine Fischapotheke...(Salz nur für Quarantänebecken!)
Stocking:
The following stocking we currently maintained in my pelvis:

-------
M / W
-------

3/7 Protomelas sp. "Steveni Taiwan" (NZ)

1/3 of Sciaenocromis fryeri (NZ)

1/3 of Copadichromis borleyi Kadango "Red Fin" (NZ)

************************************************** ************************************

So there are 18 NonMbunas in the basin.
Full grown were the approximately 187 cm fish ...
That is about 2.9L of water / cm fish or 30l / fish (gross) or approx 22l net / fish.
Think this is a well fitting frame.

************************************************** ************************************

The fryeri and Copadichromis Bock held in Harem attitude with 3 females!
The Protomelas in group housing :-)

************************************************** ************************************

My goal is to trim principle "biotopnah" select.
This has now happened, "Step by Step"!

The Copadichromis borleyi Kadango be yet another Copadichromis-pack from the Taiwan Reef soft, depending on the commercial availability!

************************************************** *************************************
Of course, no hybrids are passed from my pool!
************************************************** *************************************

For more information about my stocking can be found in the images of the fish ...


Stocking rate in the aquarium

The following is recommended in Sachkundenachweis (SKN):

Fish length amount of water per 1 cm fish length

under 2 cm -> 1 liter per cm fish length
2 cm - 5 cm -> 1.5 liters per cm fish length
5 cm - 10 cm -> 2 liters .......
10 cm - 15 cm -> 3 liters .....
15 cm u gr. -.> 4 liters per cm fish length

Proposal for stocking densities of D. Untergasser, Kosmos-Verlag,
"Diseases of aquarium fish", page 61:
Fish size (fully grown) amount of water per 1 cm fish

under 2 cm -> 1 liter
2 cm - 5 cm -> 1.5 liters
6 cm - 9 cm -> 2 liters
10 cm - 13 cm -> 3 liters
14 cm u gr. -.> 4 liters
Übersicht Protomelas sp. `steveni Taiwan`
Protomelas sp. `steveni Taiwan` - Jungtiere Mix 1
Protomelas sp. `steveni Taiwan` - (w) Mix 1
Protomelas sp. `steveni Taiwan` - (w) Mix 2
Protomelas sp. `steveni Taiwan` - Mix 2
Protomelas sp. `steveni Taiwan` - Mix 3 `...Auge in Auge...` :-)
Protomelas sp. `steveni Taiwan` - Mix 4 `junge Weiber im Pulk` (02/11)
Protomelas sp. `steveni Taiwan` - Mix 5 `Halbstarke...` :-)
Protomelas sp. `steveni Taiwan` - Bock-Mix 1
Protomelas sp. `steveni Taiwan` - Bock-Mix 2
Protomelas sp. `steveni Taiwan` - Bock Mix 3
Protomelas sp. `steveni Taiwan` - Bock-Mix 4
Protomelas sp. `steveni Taiwan` - Bock-Mix 5
Übersicht Copadichromis borleyi Kadango `Red Fin`
Copadichromis Borleyi Kadango `Red Fin` - Mix 1
Copadichromis Borleyi Kadango `Red Fin` - Mix 2
Copadichromis Kadango `Red Fin` - Mix 3
Copadichromis Borleyi Kadango `Red Fin` - Mix 4 - in neuer Umgebung...
Copadichromis Borleyi Kadango `Red Fin` - Mix 5 - `...Whow...!`
Copadichromis borleyi Kadango `Red Fin` - Der Grösste im Becken!
Mein Copadichromis-Bock mit seinem Lieblingsweibchen...:-)
Übersicht Sciaenochromis fryeri
Sciaenochromis Fryeri - Mix 1
Sciaenochromis Fryeri - Mix 3
Sciaenochromis Fryeri - Mix 4
Mix (1) - ...meine Weiber stehen voll Hinter mir! :-)
Mix (2) - munteres Beisammensein...:-)
Water parameters:
Good, hard Berliner tap water: :-)

Temperature: 26-27 ° C
pH: 8.0
GH: 12
KH: 8
NO2: <0.3 mg / l
NO3: <12.5 mg / l
NH3: undetectable
NH4: undetectable

-> Regularly determined by Tetra droplet test.


Water exchange

- 50% a week + in midweek (Wed) approximately 40L "fresh water syringe"
- 5-10l daily for balcony flowers (spring - autumn)

-> At every water change is treated with JBL AquaDur (Malawi / Tanganyika) by 1/2 Dosage water especially for east African Cichlids (containing no NaCl = common salt!).

The water quality of the East African Lakes Malawi and Tanganyika grave differs significantly from Central European tap waters. Characteristic are carbonate hardness, higher than the values ​​of total hardness and more or less strongly alkaline pH values ​​around 8-9.
JBL AquaDur Malawi / Tanganyika makes both tap water and osmosis water from the water towards the welfare of East African cichlids.
Here, the pH is adjusted and buffered to the required alkaline range.
This acts conducive to blaze of color, spawning and health.
By using this special salt the special characteristics of Malawi and Tanganyika lakes can be reached.
The carbonate hardness is raised above the total hardness and the typical for the lakes mineral compounds supplied to the aquarium water!

However, this works so not quite in my pool because the GH that is quite high with approximately 13 °, and the KH-value at me can not be brought about or more than 8 also would be too high, but so with me on definitely be the important mineral compounds * * added!
So far I have observed that this had a very positive influence on my AQ-residents ... :-)

The carbonate hardness is basically one of the most important water parameters aquatics. The KH stabilizes the pH, thus preventing the dreaded drop in pH as a sudden sharp rise in pH, which is just as dangerous.
The KH should never drop below 4 ° dKH in normal community aquariums!
Even if the raw water had once exhibited sufficient KH values ​​KH may decrease in the aquarium! This can be done through strong bacterial reduction activity or CO2 deficiency, then get out at the plants and algae are the necessary CO2 from the KH.
As a result, KH and the pH drops is unstable.

-> Every 2 weeks I admit after the water change Easy Life (after dosing indication) for the preventive water treatment in the basin.



ATTENTION: (22:09:10)

Immediately I omit the addition of salt jodfreiem after water changes because I use zeolite in my filters!
This has the (valuable) object to bind pollutants and to support the biological filtration.
This also applies to the use of water conditioners as EasyLife or Lewatit (ion exchange)!
So far so good!
A really positive meant the addition of salt, however, means that the zeolite (and Lewatit) bound toxins can be released suddenly and be issued on a time to the water again, with possible catastrophic consequences for the fish! So diseases can certainly be worse!

Appears also logical because zeolite (and Lewatit) is yes, finally regenerated with saline again ...!

It makes more sense (anyway), to isolate sick patients in a quarantine tank and then specifically there - perhaps even with salt - treat!


************************************************** ***************************
Read more one learns under: http://doelling-berlin.de/?Themen:Zeolith
************************************************** ***************************


************************************************** *******************************
FYI times a water value table for Malawi-AQ from the Internet:
************************************************** *******************************

Water temperature
Optimal value: 24 ° C - 26 ° C
Limit: 22 ° C - 30 ° C

PH value
Optimal value: [...]
Feeding:
Flakes: (alternating daily / mix)

- Aquaculture Genzel "All-Color-Booster" (1-2 times a week)
- Tetra Rubin
- Tropical Malawi
- Tropical Spirulina Forte
- Tropical Cichlid Color
- Tropical Vitality & Color
- Tropical "FD Brine Shrimp" (freeze-dried, adult Artemia brine shrimp)
- Tropical Krill Flake
- Aquatic Nature African Cichlid Excel Color S
- Söll Organics Super Kelp Flakes

+ Now and Astra DeliMix adhesive food tablets for "nibble" on the disc :-)

- JBL "Atvitol" multivitamin (is given for guidance on the dried fodder)

*****

Frozen Food: (2-3 times a week)

- Malawi mix
- Tanganyika mix
- Cyclops
- Artemia
- Mysis
- Gammarus
- White + black mosquito larvae

*****

Fresh fodder: (1-2 times a week)

- Minced shrimp + crab meat
- White mosquito larvae / living Artemia / Bachflohkrebse / mini prawns

-> Because then goes off the post ... :-)

*****

Vegetables:

- Is not looked at ...! :-)

*****

Lined is 1-2 times daily in small quantities for the ever-changing times, but sometimes not ... everything halt irregular ... does the fishes good!

*****

-> 1-2 times a week in any case of fasting!

*****
Videos:
VideoVideoVideoVideo
Further information:
************************************************** *******************
Images taken with a Nikon D5000 are with standard 15-55mm VR Lens
************************************************** *******************

I want with my device Example motivate all those who want to build with the "default options" a nature as possible "Malawi Habitat" ...!
So without "dimmable - Senior - lightbar with back-to-Nature backplane modules" ... :-)

It is great fun and immensely promotes creativity ... .-)

*****

A different type of link (Site is in English - but with great articles, pictures and information ...)
www.cichlidae.com (The Cichlid Room Companion)

*****
